Ultra-High Performance Waterproofing Admixture – Integral Type (JAS-UHPWA-101)
Product Description

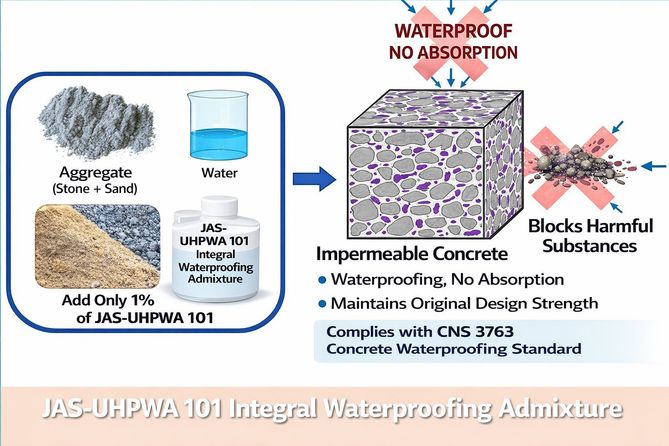

This product is a single-component integral waterproofing admixture for concrete, using advanced organic–inorganic silicon covalent bonding oil technology. With only about 1% of the cementitious powder weight, it achieves full-depth waterproofing throughout the entire concrete section. JAS-UHPWA-101 effectively prevents water penetration, steel corrosion, and concrete deterioration, significantly enhancing durability and service life. It also reduces water absorption of building panels to Grade A standards, providing direct benefits for energy saving and carbon reduction.
Product Features
Liquid Composite Oil Covalent Bonding Technology:
An advanced material technology fully compatible with concrete.
Three Savings:
Material Saving: Only 1% dosage based on cementitious powder weight is required.
Labor Saving: No additional waterproofing construction process is required.
Cost Saving: The most economical and truly effective solution.
Four Benefits:
Effective: Provides corrosion resistance, anti-deterioration protection, and enhanced durability.
Certified: Complies with the national CNS 3763 standard.
Eco-Friendly: Single-component, colorless, odorless, and environmentally friendly material.
Powerful: Strongly enhances market competitiveness.
Physical Properties
Setting Time: Initial setting occurs after 1 hour, and final setting is completed within 10 hours (CNS 3763:2009).
Stability: No shrinkage cracking, expansion cracking, or warping shall occur (CNS 3763:2009).
Strength Ratio: The compressive strength ratio of specimens with the waterproofing admixture to those without shall be not less than 0.85 (CNS 3763:2009).
Water Absorption Ratio: The water absorption ratio of specimens with the waterproofing admixture to those without shall be 0.50 or lower (CNS 3763:2009).
Water Permeability Ratio: The permeability ratio of specimens with the waterproofing admixture to those without shall be 0.50 or lower (CNS 3763:2009).
Product Packaging
Packaging: 20 kg or 180 kg steel drums.
Applications
1. Applicable to both new and existing indoor and outdoor concrete structures, as well as all types of cement precast products.
2. Suitable for gypsum boards, calcium silicate boards, fiber cement boards, autoclaved aerated concrete (AAC), and other building materials.
3. Also applicable to ground improvement and underground structures requiring waterproofing, such as cutoff piles, diaphragm walls, and similar systems.
4. For hydraulic structures and all types of submerged or coastal facilities to prevent corrosion of reinforcing steel.
Method of Use
Add about 1% of JAS-UHPWA-101 by cementitious powder weight to fresh concrete or mortar and mix uniformly. Waterproofing is completed after placement and curing.
JAS-UHPWA-101 can also be applied directly onto stone surfaces as a stone protective sealer.
Storage Stability
When stored in the original unopened packaging and kept under stable temperature conditions (temperature variation within 15 °C), the product can be stored for up to 1 year.
Safety Precautions
The application area should be kept well ventilated.
If the product splashes into the eyes or onto the skin, rinse immediately with clean water.
For industrial use only. Store in a safe place out of the reach of children.
Do not dispose of waste material into drains or water sources to prevent environmental contamination.
